实验说明
地下开采的深部或构造应力很高的区域，在临空岩体中发生突发式破坏的现象。这种现象也称为岩爆，也称为冲击地压，岩爆往往会造成工作面巷道严重损坏，设备损失，甚至人员伤亡。
利用相似材料模拟方法，借助XTDIC数字散斑观测技术，对深埋隧道周围岩爆倾向进行试验研究，直观的揭示了岩爆发生与深埋隧道变形破坏之间内在的联系。
该方法也常用于巷道支护效果研究，比如锚杆支护对围岩稳定性的影响，巷道设计选型等。

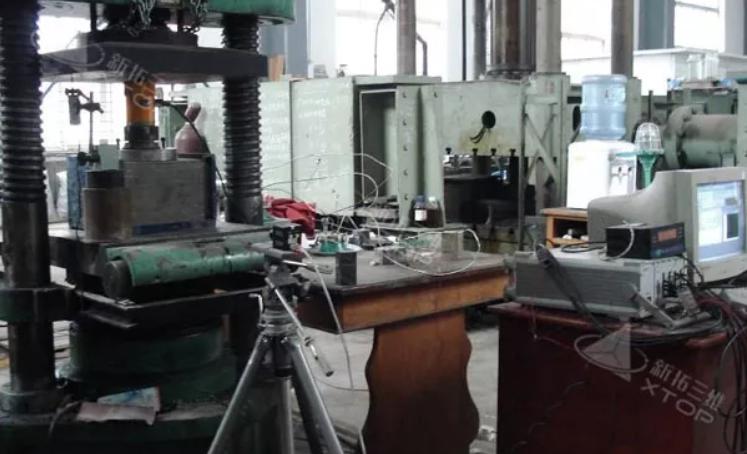

实验现场

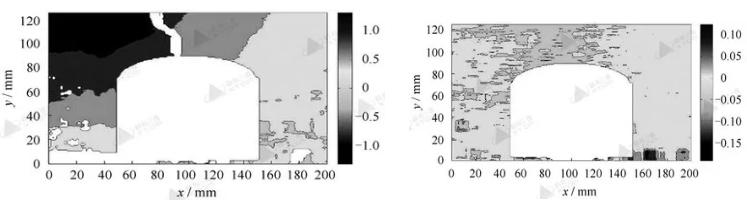

实验效果截图
