实验目的
4mX3m墙体加载过程中测量表面应变场的变化

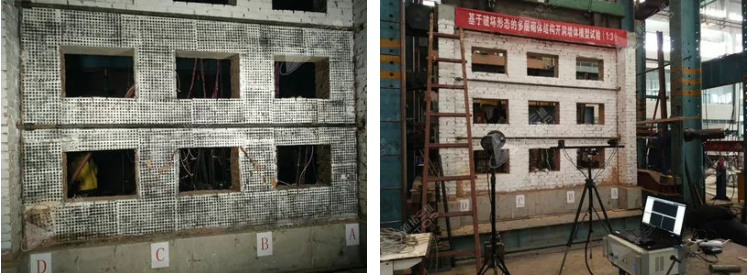

墙体表面制备散斑图案 实验现场
检测流程
（1）墙体表面制备散斑图案。
（2）架设相机位置，标定相机内外参数。
（3）墙体施加载荷，相机同步采集数据。
（4）数据分析。
数据分析

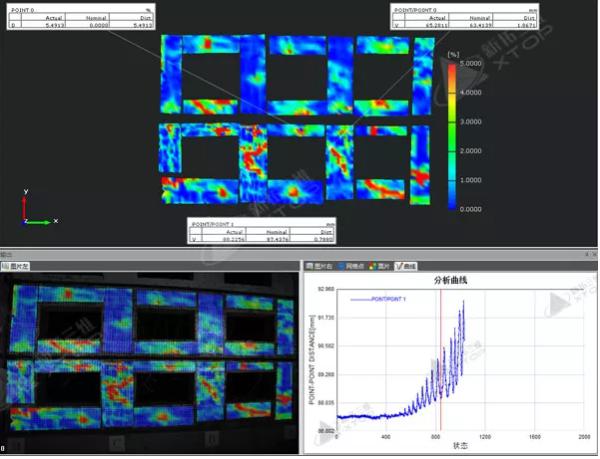

（1）应变场：观测墙体表面裂纹趋势，获取关键点应变数值。

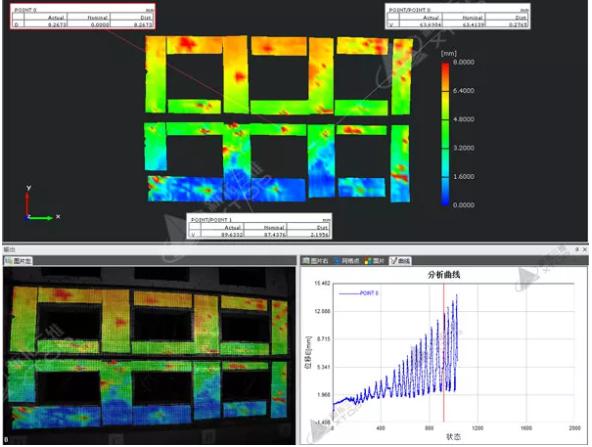

（2）位移场：观测墙体表面位移场变化趋势，获取关键点位移数值。
