3D打印火箭筒三维扫描

案例背景

3D打印作为一项新技术，为制造业提供了一项新的加工手段。3D打印凭借“增材制造”的原理，非常适合生产复杂结构的产品。该案例中的产品就是3D打印好的某结构火箭筒模型，通过对被测物的扫描和检测，能够指导生产厂商在进行3D打印时进一步优化打印参数，提升产品的质量。

使用设备

XTOM-MATRIX-5M三维光学面扫描系统

测量过程

对被测物表面进行处理，喷涂显像剂，粘贴标志点，将其置于工作台。使用XTOM-MATRIX-5M进行扫描，自动完成数据拼接。将扫描后的数据与设计模型在Geomagic Qualify软件进行对比，设置对应的公差，即可得到相应的检测结果，在关键位置进行截线，即可对截面偏差进行检测和分析，最终输出检测报告。

难点分析

很多深孔、深槽、复杂结构较多

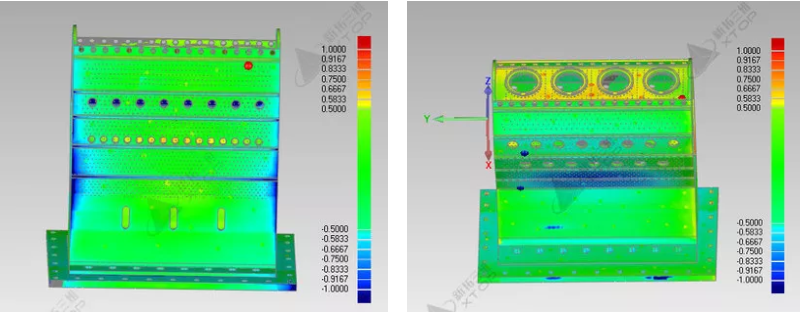

测量结果
