测量目的汽车前覆盖板在高速冲击下，测量全场的位移场及应变场。由于碰撞速度较快，采用高速相机进行观测。检测方案概述采用高速相机（1920X1440）从一侧观测，另一侧进行高速冲击，观测冲击过程中变形情况。（相机采集频率2000帧）。
实验现场
检测流程（1）汽车覆盖板表面制备散斑图案；（2）现场架设好相机及光源；（3）从一侧冲击，另一侧实时采集数据；（4）从高速相机中提取图片进行分析；（5）重建位移场及应变场。数据分析
汽车前覆盖板应变场

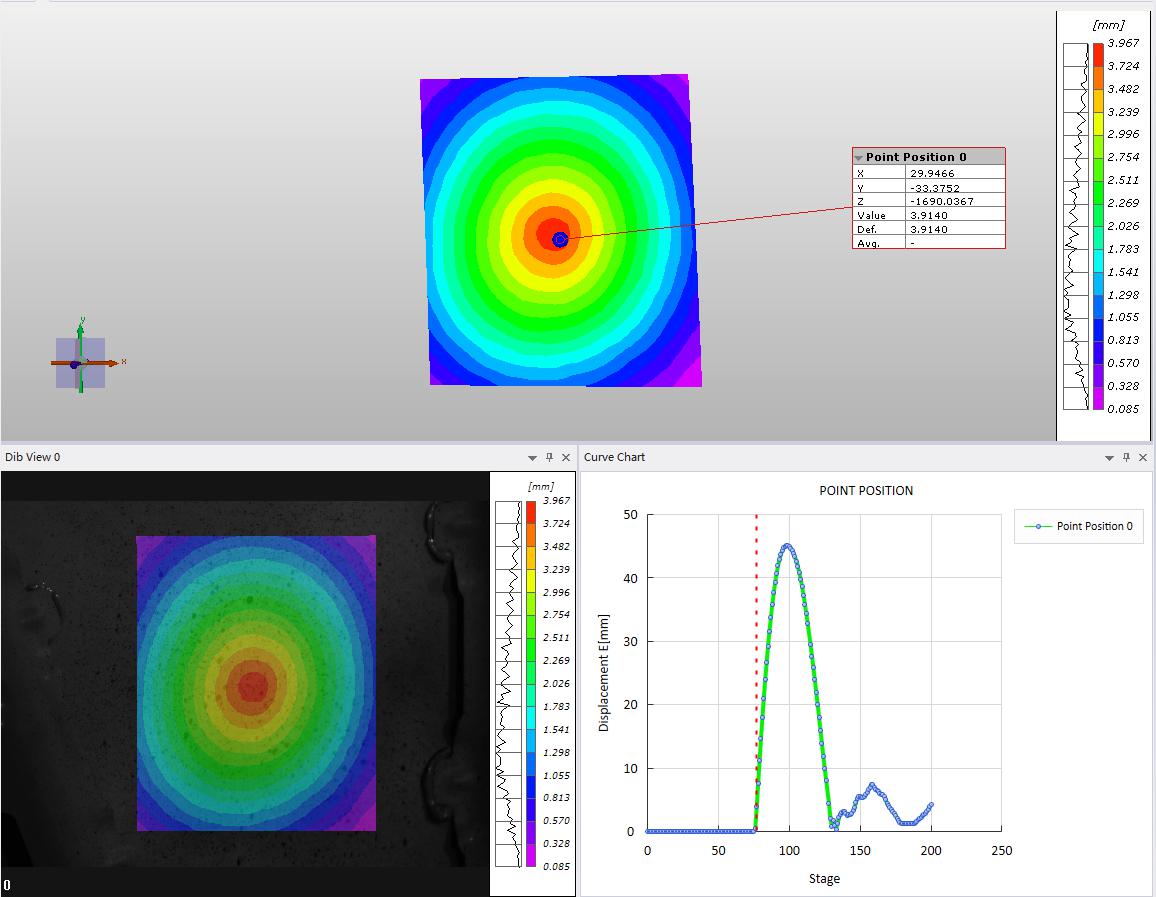

汽车前覆盖板位移场
