Option measurement system

Option Industry application

汽车车载导航系统测量检测

扫描对象

某品牌汽车的车载导航系统

客户需求

检测整个装配件的装配偏差

使用设备

XTOM-MATRIX三维光学面扫描系统

测试过程

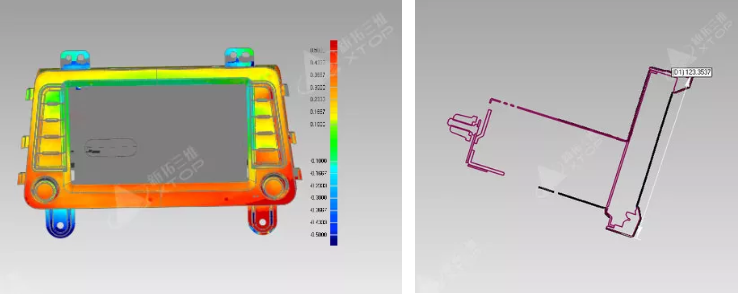

对被测物表面进行处理，喷涂显像剂，粘贴标志点，将其置于工作台。使用XTOM-MATRIX进行扫描，自动完成数据拼接。将扫描后的数据与设计模型在Geomagic Qualify软件进行对比，设置对应的公差，即可得到相应的检测结果，在关键位置进行截线，即可对截面偏差进行检测和分析，最终输出检测报告。

案例背景

目前车载导航系统已经是所有汽车的标准配置，对于该类产品的检测需求也日益增加。因为塑料产品的结构容易变形，产品自身就容易产生装配变形，也就不便于使用夹具和传统设备进行检测。而使用三维光学面扫描技术，可以对被测物进行非接触式测量，不会对被测物施加额外的变形，还能够进行全表面，深孔和深槽的检测，高效准确的完成检测需求。
