测量目的
采用新拓三维XTOM三维扫描仪，测量齿轮在啮合过程中，侧面的变形情况。
检测方案概述
系统测量幅面为400mmX300mm，采用两个工业相机（500万、35帧工业相机），实时捕捉齿轮啮合过程中表面的散斑图案，通过相机标定、立体匹配、三维重建，最终获取物体表面的三维坐标、位移场、应变场等数据。
检测流程

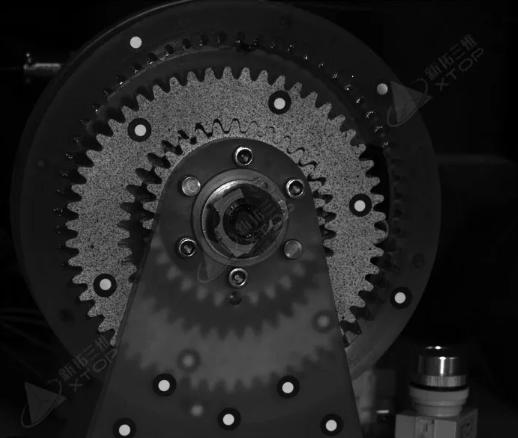

（1）齿轮侧面制备散斑图案。
（2）架设相机位置，标定相机内外参数。
（3）齿轮啮合转动，相机同步采集数据。
（4）数据分析。

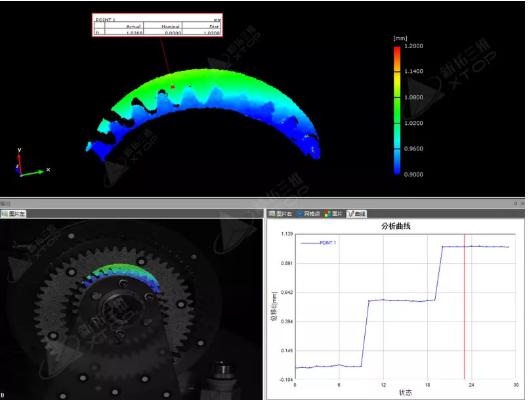

数据分析
